CUTTERMASTER TOOL AND CUTTER GRINDER - US Made
The Original |
|
Grinds O.D.s and ends of standard end mills in
one setup within just a few minutes.
Extremely versatile and is used for much more
than just end mills. With the z-axis you get 8
different axes to work with for unlimited
versatility.
1 Machine grinds it all end mill, drills,
roughing endmill, taps, countersinks, carbide tools,
radius end mills, lathe tool bits, various forms
tools, reamers, performs gashing and much more.
The pneumatic finger instantly and automatically
sets primary and secondary clearance angles with the
flip of switch.
Dials zero out.
Air bearing has a 360 degree swivel base for
taper grinding.
The Jet-Stream air bearing fixture is precision
honed and capable of grinding to close tolerances.
The spindle sleeve is made from stainless steel and
the spindle itself is hard chromed steel.
Takes standard 5C collets, with end mill holders
available that can hold shank sizes up to 2".
Tables are cast 2" iron and precision ground.
Motor/spindle assembly tilts to positive and
negative angles, cutting tool clearance angles can
be adjusted as needed.
Grinding chart provides clearance angles for all
end mills from 3/16"-3".
1 year warranty against factory defects and
workmanship.
Air bearing stroke - 10.5"
Air bearing swing over table - 9.8".
Cutting tool capacity - 2" shank, 9.8" O.D., 10.5"
flute length
T-Slot dimension - .800 x .500 x .670
Table feed graduations - .001 or .02mm
X-Axis table travel - 6"
Y-Axis table travel - 3", plus motor sildes back &
forth 6"
X-Axis table working space - 16.5" x 5.5"
Y-Axis travel working space - 13" x 5.5"
Wheel - 5" cup (or 6" dish with Z-axis), 1-1/4"
arbor Motor tilt - +35/-8 degrees
Motor - 1/3 hp, 3450 rpm, 110v/60hz or 220v/50hz
Net weight - 180 pounds 82 kilos,br> Gross weight -
232 pounds / 106 kilos
Machine dimensions, not including handles - 21" x
20" x 21"
Shipping dimensions - 30" x 28" x 29"
CUTTERMASTER 2012 Price List
New for 2012

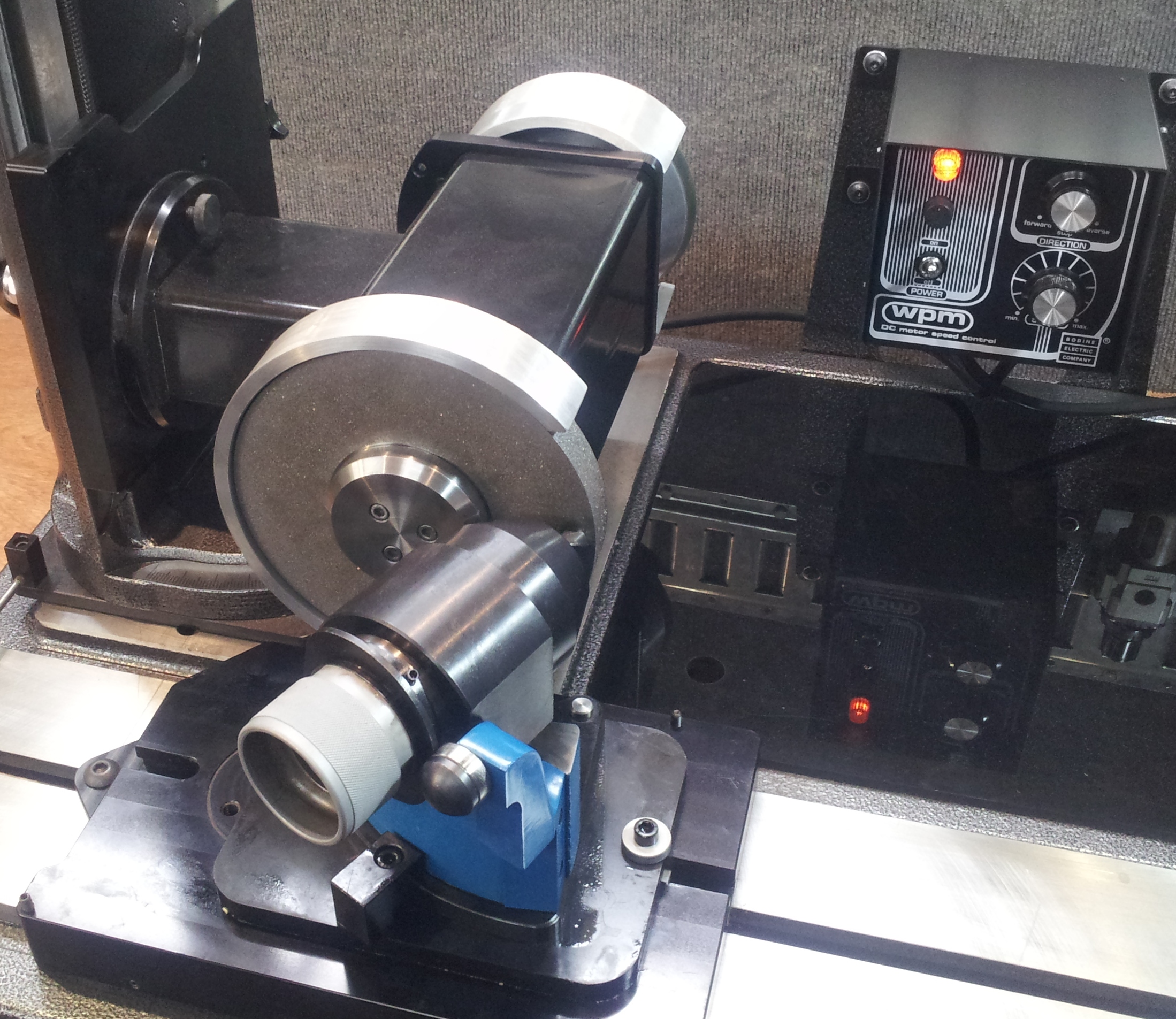

Drill Sharpening Attachment for the CUTTERMASTER
Sharpen from .062 to 8.75 , Several different
Tip Profiles
HSS or Carbide
|
|
| |
|
|
